Run Comparison

cbicall compare-runs compares completed CBIcall run directories or run-report.json files. Use it to audit whether repeated local, HPC, container, cloud, or backend runs used the same framework, workflow, resources, execution contract, and comparable outputs.

Audit, not biological validation

compare-runs does not prove that two biological analyses are equivalent. It checks the CBIcall execution and output evidence recorded for completed runs. For variant-output reproducibility, start with the VCF calls fingerprint and then inspect the stricter full-record fingerprint.

Run It

Two runs

bin/cbicall compare-runs run_a/ run_b/ --output compare-report.txt

This prints a direct pairwise comparison and writes compare-report.html by default.

Three or more runs

bin/cbicall compare-runs baseline_run/ repeat_1/ repeat_2/ repeat_3/ \
  --alias baseline local-repeat cloud-repeat hpc-repeat \
  --output compare-report.txt

With three or more runs, CBIcall prints both a baseline comparison and an all-to-all matrix. Use aliases when run-directory names are long or opaque.

Optional MultiQC

bin/cbicall compare-runs run_local/ run_cloud/ run_hpc/ \
  --alias local cloud hpc \
  --output compare-report.txt \
  --multiqc
multiqc compare-report_mqc/

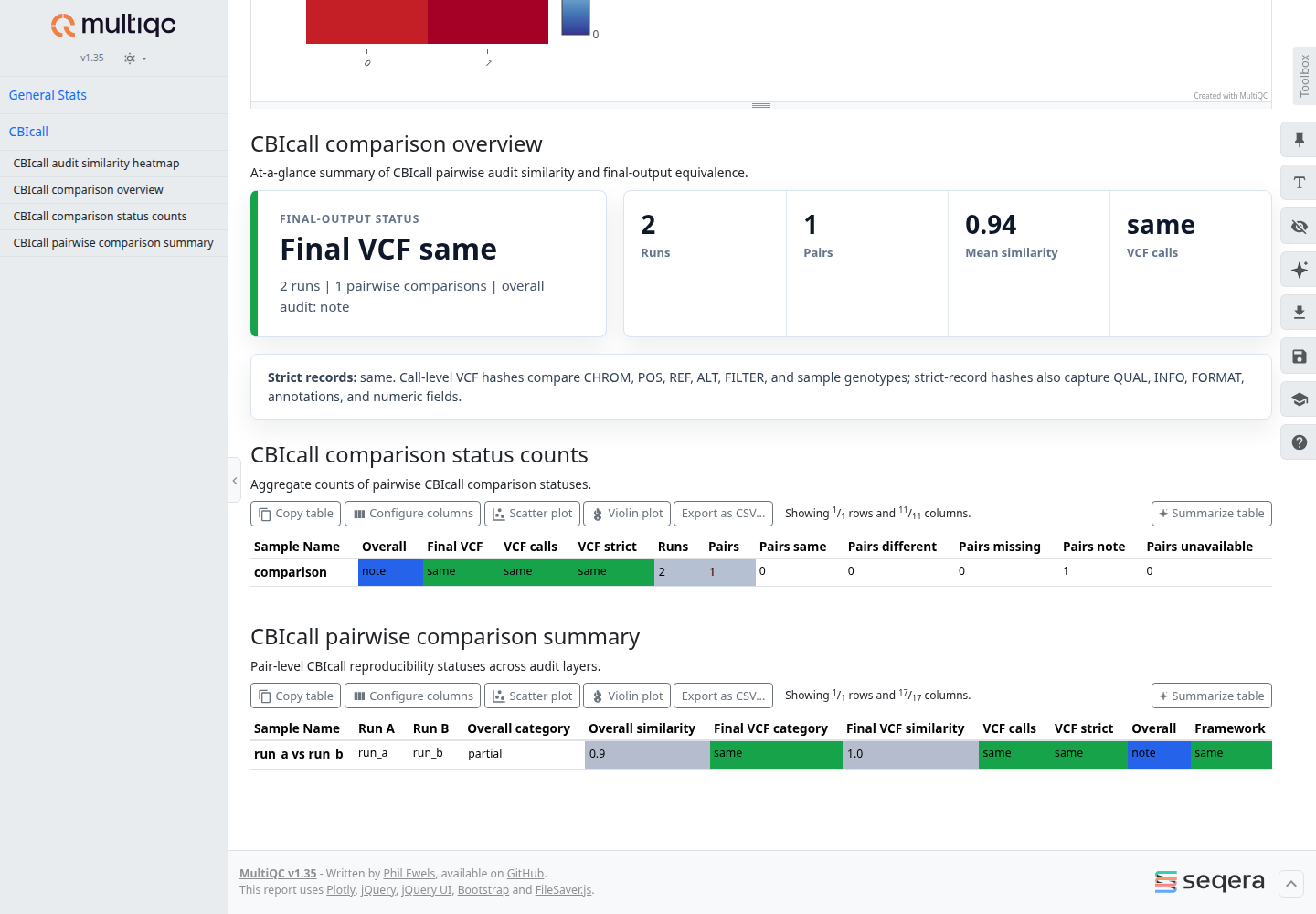

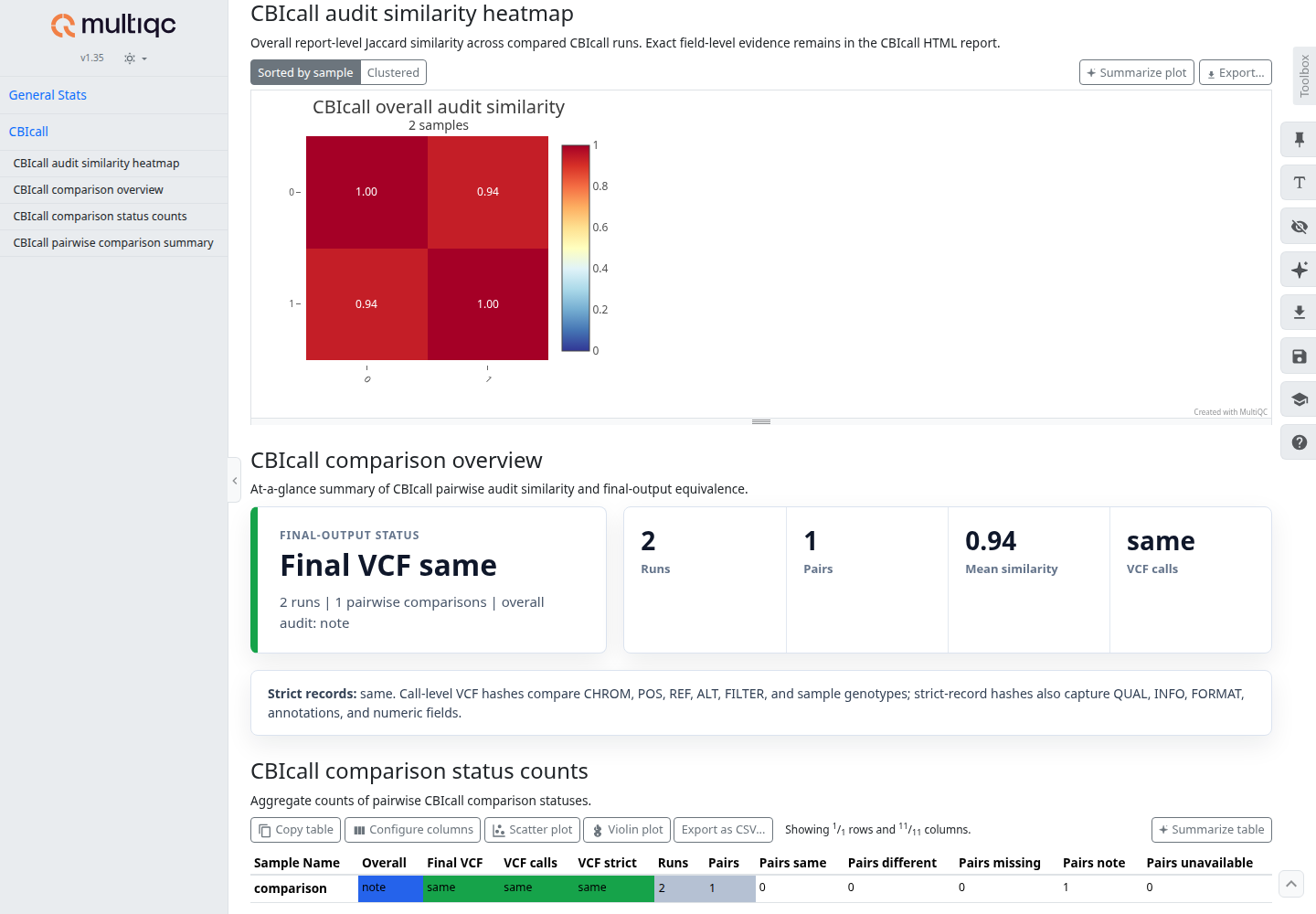

--multiqc writes a custom-content directory for projects that already aggregate QC with MultiQC. It includes numeric per-run statistics, pairwise status/similarity categories, aggregate status counts, and an audit-similarity heatmap. The CBIcall text and HTML reports remain the primary audit evidence.

Keep These Files

For a concise audit, archive the comparison report plus the run reports that were compared.

File	Why it matters
compare-report.txt	Canonical text audit artifact; easy to diff and archive.
compare-report.html	Static browser view with overview, matrices, evidence, and raw text.
run-report.json	Compact provenance report used by compare-runs.
log.json	Full resolved configuration, runtime parameters, and resource details.
cbicall-execution-contract.json	Backend-ready command, generated launch files, and normalized execution fingerprint.
Workflow log	Execution log for Bash, Snakemake, Nextflow, or Cromwell.
03_stats/*.vcf.sha256.txt	VCF fingerprint report when produced by the workflow, including strict-record and call-level hashes.

What Is Compared

Layer	Main evidence
Framework	CBIcall, Python, Java, configured native Java, and backend versions.
Pipeline	Workflow key, registry version, entrypoint, external release, and workflow fingerprint.
Execution	Task count and peak RSS/VMEM when the backend provides an execution trace.
Execution contract	Normalized execution-contract fingerprint, command fingerprint, and generated launch-file hashes.
Software	Software-version fingerprint from the resource catalog or workflow-reported version table.
Workflow files	Entrypoint and helper/config file paths plus SHA-256 values.
Resources	Resource key, version, and fingerprint from the selected resource catalog entry.
Outputs	File-inventory fingerprint, inventory size, VCF call-level fingerprints, and strict VCF record fingerprints.

Runtime context versus reproducibility

Single-run reports include runtime context such as hostname and host thread count. compare-runs does not treat hostname as a reproducibility criterion: cross-machine runs are expected to have different hostnames. For reproducibility, focus on workflow, resource, execution-contract, software, and final-output fingerprints.

Most important output check

For WES/WGS output reproducibility, read VCF rows in this order:

1. <vcf> calls - hashes CHROM, POS, REF, ALT, FILTER, and genotype (GT) values for all samples in VCF sample order. Because FILTER is included, PASS and non-PASS records are both audited. This is the primary CBIcall check for whether final reported variant calls match.
2. <vcf> strict records - hashes complete non-header VCF records after sorting. This stricter check also captures QUAL, INFO, FORMAT, PL, annotations, and other numeric fields.

Both hashes are computed from VCF records, not raw compressed bytes, so header timestamps, command lines, and compression metadata do not create false differences.

Read The HTML

The text report is the canonical artifact, but the HTML report is easier to scan:

Tab	Use it for
Overview	Quick run count, status summary, and high-level differences.
Baseline Matrix	Field-by-field comparison against the first run, when the report includes a baseline view.
Pairwise Audit	One NxN matrix per audit layer, shown for multi-run all-to-all reports; each cell shows a derived category plus Jaccard similarity.
Evidence	Baseline values and compact fingerprints behind the visual summaries.
Raw Text	Exact terminal-style report embedded in the HTML.

Pairwise audit

The Pairwise Audit tab combines the two comparison signals in one matrix. Each cell combines CBIcall's strict pair status with a Jaccard similarity score over normalized report facts for the same run pair and audit layer. The visible category is derived for readability: same, near, partial, diverged, missing, or n/a; the hover text keeps the exact strict status. This helps triage and cluster comparable runs, but it does not replace exact hash comparisons or biological concordance analyses.

Interpret Differences

Use this order when reading a comparison:

1. Check Framework and Software to see whether the driver, runtime, or tool table changed.
2. Check Execution Contract to confirm CBIcall launched the same backend-ready plan.
3. Check Pipeline and Workflow files to locate changed workflow code or config.
4. Check Resources to confirm the external dependency bundle matches.
5. Check Outputs, especially the VCF calls fingerprint and then the strict records fingerprint.

If the workflow fingerprint changed but the VCF calls fingerprint is the same, the compared final VCFs are call-equivalent under CBIcall's deterministic comparison rules. The workflow change should still be inspected before claiming full execution identity.

Strict VCF identity versus call-level reproducibility

A strict records difference with a matching calls fingerprint means the reported variant sites, filters, and genotypes match, but at least one non-call field differs. Inspect strict-only differences before deciding whether they are acceptable for the reproducibility claim being made.

Advanced view override

The default report shape is usually the right one: two runs get a direct comparison, and three or more runs get baseline plus all-to-all views. Use --comparison-view baseline, --comparison-view all-to-all, or --comparison-view both only when you need to force a specific report shape.

Status Vocabulary

Status	Meaning
same	Values or fingerprints match.
different	Values or fingerprints exist in all compared runs but differ.
missing	Evidence is present in only some runs.
note	Audit hint; not treated as a failed reproducibility check.
not available	Evidence is not recorded in any compared run.

Fingerprint Notes

Runtime fingerprints

Workflow and resource fingerprints are computed at runtime from the files and catalog entries actually resolved for the run. CBIcall deliberately does not store expected workflow hashes in the registry or catalog, because harmless comment or formatting edits would otherwise require metadata churn.

Normalized execution contracts

The execution-contract fingerprint is normalized by replacing the concrete run directory and run ID with placeholders before hashing:

"normalization": {
  "project_dir": "{PROJECT_DIR}",
  "run_id": "{RUN_ID}"
}

The raw contract still records audit details, but the fingerprint ignores these expected per-run values so repeated launches can compare as the same backend-ready execution plan.

For external nf-core workflows, CBIcall uses canonical output patterns declared in the workflow registry. For example, the Sarek entry points to the HaplotypeCaller VCF under sarek/variant_calling/haplotypecaller/, so repeated Sarek runs can be audited without hard-coding Sarek paths in compare-runs.

The file-inventory fingerprint is path-based, not content-based. It hashes the sorted list of relative file paths in the run directory, excluding generated report files and backend work directories. Use it to audit run-directory layout; use VCF call-level and strict-record hashes to audit compared variant records.

Inspect One Run

To inspect one completed run without rerunning the workflow:

bin/cbicall report completed_run/

This is read-only by default. Add explicit flags when you want artifacts to be generated or refreshed:

bin/cbicall report completed_run/ --html
bin/cbicall report completed_run/ --refresh -O
bin/cbicall report completed_run/ --refresh --html -O

--html writes run-report.html; --refresh updates output-derived metadata such as the file inventory and VCF hash sidecars in run-report.json. Existing files are not replaced unless -O/--overwrite is supplied.
