Architecture

CBIcall is a configuration-driven execution framework for reproducible variant-calling pipelines. It does not replace Bash, Snakemake, Nextflow, or Cromwell. Instead, it validates one user request, resolves it against approved workflow-registry and resource definitions, launches the selected backend, and records the evidence needed to audit the run afterwards.

The architecture is organized around a three-layer execution contract:

Layer	Purpose
User parameters YAML	Describes the analysis intent: pipeline, mode, genome, input data, workflow backend, workflow provider, software stack, and run-specific parameters.
Workflow registry YAML	Maps the requested analysis to an approved workflow implementation, entrypoint, backend, provider, version, expected files, and canonical outputs.
Resource catalog JSON	Defines external resources: reference bundles, workflow compatibility, resource identity, availability, and integrity metadata.

After these layers are validated and resolved, CBIcall creates a deterministic run directory, dispatches the selected pipeline implementation, and writes structured audit artifacts such as log.json, cbicall-execution-contract.json, run-report.json, optional HTML reports, and comparison reports.

The actual bioinformatics work, such as alignment, variant calling, mtDNA analysis, and QC, remains implemented in backend workflow files or upstream external pipelines.

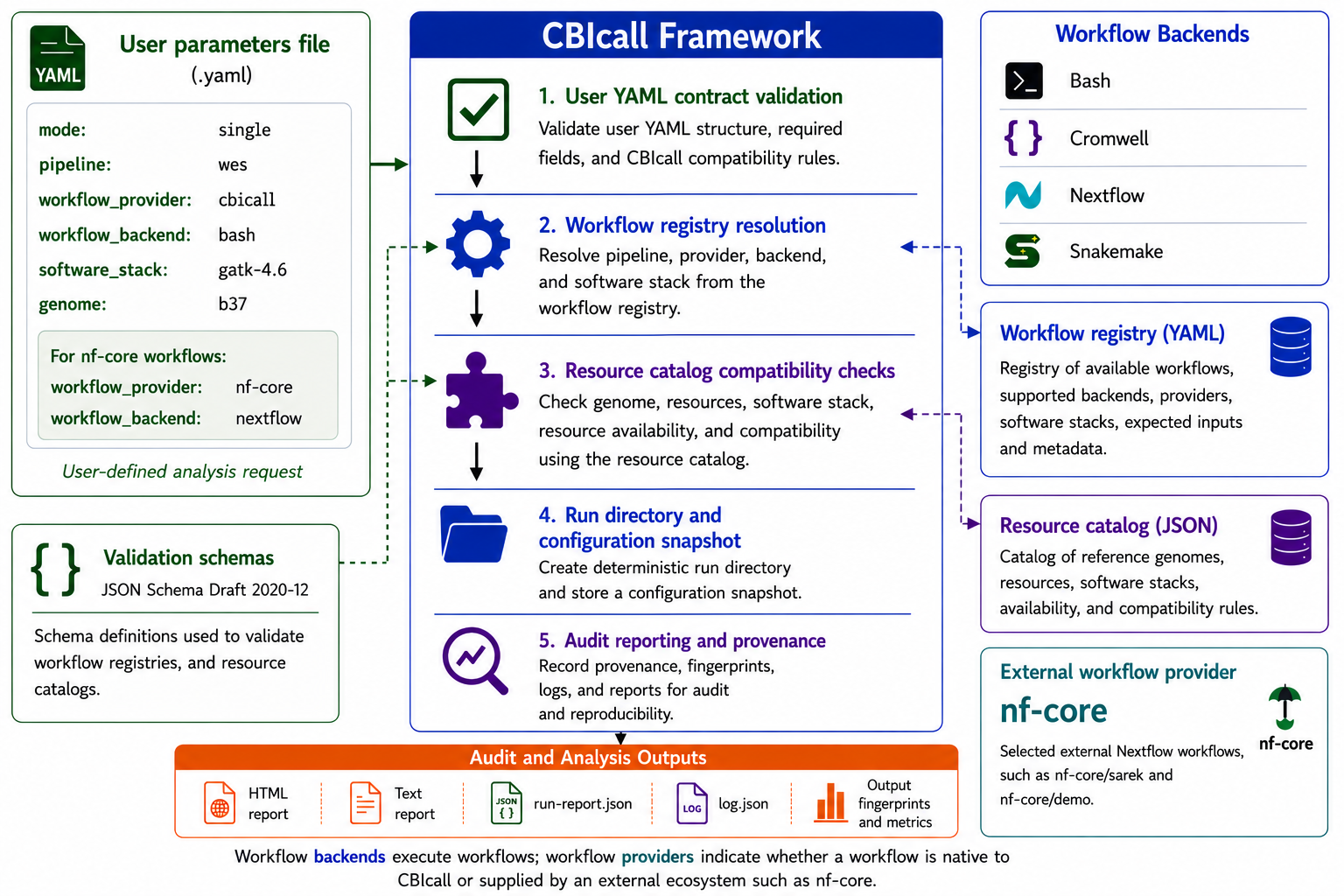

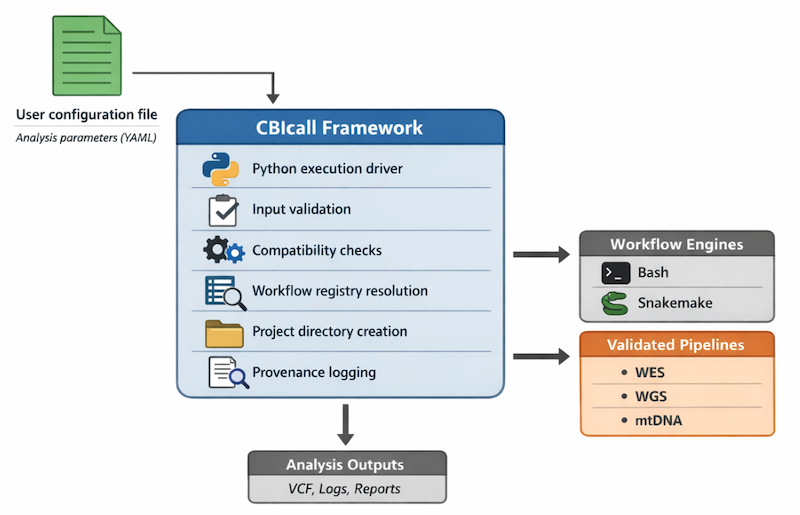

Architecture diagram

CBIcall architecture diagram

CBIcall validates the user parameters YAML, resolves it against the workflow registry and resource catalog, launches the selected backend, and records audit outputs.

Mental model: the user parameters file describes what should be run; the workflow registry decides how it is run; the resource catalog defines which external dependencies are valid.

Main components

Component	Role	Main files or directories
Execution controller	Reads the user parameters YAML, applies defaults, validates schema-level and compatibility rules, resolves runtime profiles, and starts the selected backend command.	`src/cbicall/cli.py`, `src/cbicall/config.py`
Validation schemas	Define the structure and required fields for workflow registry entries and resource catalog entries; user parameters are validated by the configuration layer and compatibility checks.	`workflows/schema/`, `resources/cbicall-resource-catalog.schema.json`, `src/cbicall/config.py`
Workflow registry	Developer-facing routing table that maps `workflow_provider`, `workflow_backend`, `software_stack`, `pipeline`, `mode`, and `registry_version` to one approved implementation.	`workflows/registry/cbicall-workflow-registry.yaml`, `src/cbicall/workflow_registry.py`
Resource catalog	Declares external dependency sets, resource identifiers, compatible workflow keys, availability rules, and checksum metadata for downloadable CBIcall bundles.	`resources/cbicall-resource-catalog.json`, `src/cbicall/resources.py`
Workflow runners	Execute the resolved implementation. Bash runs local scripts directly; Snakemake, native Nextflow, and Cromwell run bundled workflow files; external nf-core entries are launched through Nextflow.	`src/cbicall/execution.py`
Workflow implementations	Contain native CBIcall workflows and registered external workflow entries. Native workflows follow the CBIcall output contract; external workflows keep their upstream output layout.	`workflows/bash/`, `workflows/snakemake/`, `workflows/nextflow/`, `workflows/cromwell/`
Run audit layer	Writes `log.json`, `cbicall-execution-contract.json`, `run-report.json`, workflow fingerprints, resource identity, output inventories, normalized VCF fingerprints, HTML reports, and comparison reports.	`src/cbicall/cli.py`, `src/cbicall/html_reports.py`, `bin/cbicall compare-runs`
Contract tests	Run small examples and validate expected output contracts without keeping full `ref_*` run directories in the repository.	`src/cbicall/integration_tests.py`, `tests/fixtures/integration/`

Directory structure

<sample_or_project_dir>/
  cbicall_<backend>_<software-stack>_<pipeline>_<mode>_<genome>_<run-id>/
    01_bam/
    02_varcall/
    03_stats/
    logs/
    log.json
    cbicall-execution-contract.json
    run-report.json

External nf-core runs use a related layout:

<project_dir>/
  cbicall_nextflow_nf-core_<pipeline>_<mode>_<display-genome>_<run-id>/
    <nf-core-output-dir>/
    work/
    pipeline_info/
    log.json
    cbicall-execution-contract.json
    run-report.json

Typical native usage:

Intermediate alignment and BAM files are stored under 01_bam/.
Variant-calling outputs, gVCFs, VCFs and related files are stored under 02_varcall/.
Summary statistics and QC metrics are collected under 03_stats/.
Log files for workflow steps are stored under logs/.

For external nf-core workflows, upstream nf-core outputs remain under the pipeline output directory, while CBIcall adds audit files at the run-directory root.

Native and External Implementations

CBIcall uses native to describe the output contract, not the workflow language. A pipeline implementation is CBIcall-native when it writes the expected CBIcall run layout inside the generated cbicall_* directory. An implementation is external when CBIcall launches and audits it but the upstream pipeline keeps its own output layout. External provider entries can still participate in run comparison when the workflow registry declares canonical final outputs.

Resolution model

The parameters YAML selects an analysis in layers:

workflow_provider: cbicall
workflow_backend: bash
software_stack: gatk-4.6
pipeline: wes
mode: single
genome: b37

For native pipeline implementations, workflow_provider: cbicall is the default. For external nf-core provider entries, users select workflow_provider: nf-core and workflow_backend: nextflow; the external release is declared by the registry entry.

CBIcall resolves default_registry_version from the registry unless an advanced run pins a specific registry_version. The resolved workflow identity therefore combines the provider, backend, software stack, pipeline, mode, genome, registry version, and workflow fingerprints. Resource compatibility is resolved separately through the resource catalog, so workflow routing and external dependency identity remain explicit but independent.

Run identity: the workflow registry identifies the code path and provider; the resource catalog identifies the external dependency set. Both are written to run metadata and comparison reports.

Execution model

CBIcall supports two analysis modes:

Mode	Meaning
`single`	One sample is processed independently.
`cohort`	Joint or cohort-level analysis, depending on the selected pipeline.

Workflow backends execute workflow definitions:

Workflow backend	Role
`bash`	Direct native shell workflow execution.
`snakemake`	Native Snakemake workflow execution.
`nextflow`	Native Nextflow workflow execution or external nf-core dispatch.
`cromwell`	Native WDL/Cromwell workflow execution.

Workflow providers identify where the implementation comes from:

Workflow provider	Meaning
`cbicall`	Pipeline implementation is maintained as part of CBIcall and follows the CBIcall output contract.
`nf-core`	Pipeline implementation comes from nf-core and keeps its upstream output layout.

Backend choice

Bash workflows are direct and transparent. Snakemake, Nextflow, and Cromwell can provide backend-managed orchestration for CBIcall-native implementations when those implementations produce the CBIcall output contract. External nf-core provider entries are also launched through the Nextflow backend, but their test data, containers, and references are managed by nf-core/Nextflow rather than by the CBIcall resource bundle.

Runtime profiles

Native CBIcall workflows can expose more than one environment mapping in the workflow registry. The default profile is local; an operator can select another profile from the CLI:

bin/cbicall run -p parameters.yaml --runtime-profile cnag-hpc

Profiles are intentionally not part of the user YAML. They are deployment choices, not biological analysis parameters. The resolved profile and selected environment file are recorded in log.json for real runs.

Run outputs and audit files

Every run records three complementary metadata files:

File	Purpose
`log.json`	Detailed run log with resolved configuration, selected implementation, runtime profile, resource bundle identity, and command context.
`cbicall-execution-contract.json`	Backend-ready execution plan created after validation and registry/resource resolution, including the command, generated backend files, and controlled environment overrides.
`run-report.json`	Compact audit report for comparing runs, including execution-contract, workflow, resource, software, output inventory, and canonical output fingerprints, status, and elapsed time.

Use bin/cbicall compare-runs to compare two run-report.json files and, by default, generate both terminal and HTML summaries.

Supported Pipelines and Backends

Native CBIcall workflows

Pipeline	Mode	Genome	Software stack	Bash	Snakemake	Nextflow	Cromwell
WES	`single`	`b37`	`gatk-3.5`, `gatk-4.6`	V	`gatk-4.6`	`gatk-4.6`	`gatk-4.6`
WES	`cohort`	`b37`	`gatk-3.5`, `gatk-4.6`	V	`gatk-4.6`	`gatk-4.6`	`gatk-4.6`
WGS	`single`	`b37`, `hg38`	`gatk-4.6`	V	V	V	`gatk-4.6`
WGS	`cohort`	`b37`, `hg38`	`gatk-4.6`	V	V	V	`gatk-4.6`
mtDNA	`single`	`rsrs`	`gatk-3.5`	V	X	X	X
mtDNA	`cohort`	`rsrs`	`gatk-3.5`	V	X	X	X

CBIcall does not ship a validated gatk-3.5 WGS workflow; native WGS support is provided through the gatk-4.6 stack.

mtDNA platform limitation

The bundled mtDNA workflow is not supported on ARM / aarch64 because of legacy third-party dependencies.

Registered external workflows

Pipeline	Mode	Registry source	Release	Resource model
`demo`	`single`	`nf-core/demo`	`1.1.0`	Nextflow/nf-core managed
`sarek`	`cohort`	`nf-core/sarek`	`3.8.1`	Nextflow/nf-core managed

Validation commands

Command	Checks
`bin/cbicall validate-registry`	Workflow registry structure, schema, referenced files, and compatible resource keys.
`bin/cbicall validate-parameters -p parameters.yaml`	One concrete run setup, including parameter compatibility, selected implementation, runtime profile, and installed resource identity when applicable.
`bin/cbicall test --wes-bash`, `--backend-equivalence`, and related flags	Contract integration examples that run selected pipeline implementations; backend-equivalence mode compares normalized WES VCF output across native backends.

Extensibility

New native pipelines can usually be added without modifying the core execution layer:

Register the workflow under workflows/registry/cbicall-workflow-registry.yaml.
Place implementation files under the backend and software-stack directory.
Add a registry_versions entry so changes can be pinned and audited.
Add or update resource catalog compatibility when the workflow needs a CBIcall bundle.
Add an integration-test fixture when a small runnable example exists.

External workflows can also be registered through the Nextflow backend when they can be launched through a stable source and release, such as nf-core/sarek.
