Generic JSON

Google Colab notebook

Try out Pheno-Ranker using our Google Colab notebook. You can view it without signing in, but running the code requires a Google account.

Open In Colab

We also have a local copy of the notebook that can be downloaded from the repo.

RoleConfig-driven input
Accepted inputGeneric JSON/YAML records
ConfigurationUser-provided YAML/JSON
Best forCustom categorical data models
About this tutorial

This tutorial deliberately uses generic JSON data (i.e., movies) to illustrate the capabilities of Pheno-Ranker, as starting with familiar examples can help you better grasp its usage.

Once you are comfortable with the concepts using movie data, you will find it easier to apply Pheno-Ranker to real GA4GH standards. For specific examples, please refer to the cohort and patient pages in this documentation.

MoviePackets​

For this tutorial, we will use MoviePackets to show how Pheno-Ranker can work with generic JSON files.

MoviePackets is the invented generic JSON format used in this tutorial.
What is a MoviePacket file?

A MoviePacket is an invented data exchange format 😄 designed for movies. In this tutorial it plays the same role that Phenotype Exchange Format (PXF) plays for pheno-clinical data: it is simply the input data model. Since it is generic JSON, its Pheno-Ranker configuration uses format: JSON.

Imagine you have a catalog of 25 movies described in JSON format. Each movie is one record, and each record has several properties, such as title, genre, year, country, and rating. In Pheno-Ranker documentation, these selectable properties are often called terms.

See JSON
[
  {
    "title": "TheShawshankRedemption",
    "genre": [
      "Drama"
    ],
    "year": 1994,
    "country": "USA",
    "rating": 9.3
  },
  {
    "title": "TheGodfather",
    "genre": [
      "Crime",
      "Drama"
    ],
    "year": 1972,
    "country": "USA",
    "rating": 9.2
  },
  {
    "title": "TheDarkKnight",
    "genre": [
      "Action",
      "Crime",
      "Drama"
    ],
    "year": 2008,
    "country": "USA",
    "rating": 9
  },
  {
    "title": "PulpFiction",
    "genre": [
      "Crime",
      "Drama"
    ],
    "year": 1994,
    "country": "USA",
    "rating": 8.9
  },
  {
    "title": "Schindler'sList",
    "genre": [
      "Biography",
      "Drama",
      "History"
    ],
    "year": 1993,
    "country": "USA",
    "rating": 8.9
  },
  {
    "title": "Inception",
    "genre": [
      "Action",
      "Adventure",
      "Sci-Fi"
    ],
    "year": 2010,
    "country": "USA",
    "rating": 8.8
  },
  {
    "title": "FightClub",
    "genre": [
      "Drama"
    ],
    "year": 1999,
    "country": "USA",
    "rating": 8.8
  },
  {
    "title": "TheLordoftheRings:TheReturnoftheKing",
    "genre": [
      "Adventure",
      "Drama",
      "Fantasy"
    ],
    "year": 2003,
    "country": "NewZealand",
    "rating": 8.9
  },
  {
    "title": "Goodfellas",
    "genre": [
      "Biography",
      "Crime",
      "Drama"
    ],
    "year": 1990,
    "country": "USA",
    "rating": 8.7
  },
  {
    "title": "ForrestGump",
    "genre": [
      "Drama",
      "Romance"
    ],
    "year": 1994,
    "country": "USA",
    "rating": 8.8
  },
  {
    "title": "TheMatrix",
    "genre": [
      "Action",
      "Sci-Fi"
    ],
    "year": 1999,
    "country": "USA",
    "rating": 8.7
  },
  {
    "title": "TheLordoftheRings:TheFellowshipoftheRing",
    "genre": [
      "Adventure",
      "Drama",
      "Fantasy"
    ],
    "year": 2001,
    "country": "NewZealand",
    "rating": 8.8
  },
  {
    "title": "StarWars:EpisodeV-TheEmpireStrikesBack",
    "genre": [
      "Action",
      "Adventure",
      "Fantasy"
    ],
    "year": 1980,
    "country": "USA",
    "rating": 8.7
  },
  {
    "title": "TheSilenceoftheLambs",
    "genre": [
      "Crime",
      "Drama",
      "Thriller"
    ],
    "year": 1991,
    "country": "USA",
    "rating": 8.6
  },
  {
    "title": "Se7en",
    "genre": [
      "Crime",
      "Drama",
      "Mystery"
    ],
    "year": 1995,
    "country": "USA",
    "rating": 8.6
  },
  {
    "title": "Interstellar",
    "genre": [
      "Adventure",
      "Drama",
      "Sci-Fi"
    ],
    "year": 2014,
    "country": "USA",
    "rating": 8.6
  },
  {
    "title": "Casablanca",
    "genre": [
      "Drama",
      "Romance",
      "War"
    ],
    "year": 1942,
    "country": "USA",
    "rating": 8.5
  },
  {
    "title": "TheGreenMile",
    "genre": [
      "Crime",
      "Drama",
      "Fantasy"
    ],
    "year": 1999,
    "country": "USA",
    "rating": 8.6
  },
  {
    "title": "CityofGod",
    "genre": [
      "Crime",
      "Drama"
    ],
    "year": 2002,
    "country": "Brazil",
    "rating": 8.6
  },
  {
    "title": "LifeisBeautiful",
    "genre": [
      "Comedy",
      "Drama",
      "Romance"
    ],
    "year": 1997,
    "country": "Italy",
    "rating": 8.6
  },
  {
    "title": "TheUsualSuspects",
    "genre": [
      "Crime",
      "Mystery",
      "Thriller"
    ],
    "year": 1995,
    "country": "USA",
    "rating": 8.5
  },
  {
    "title": "SpiritedAway",
    "genre": [
      "Animation",
      "Adventure",
      "Family"
    ],
    "year": 2001,
    "country": "Japan",
    "rating": 8.6
  },
  {
    "title": "SavingPrivateRyan",
    "genre": [
      "Drama",
      "War"
    ],
    "year": 1998,
    "country": "USA",
    "rating": 8.6
  },
  {
    "title": "ThePianist",
    "genre": [
      "Biography",
      "Drama",
      "Music"
    ],
    "year": 2002,
    "country": "France",
    "rating": 8.5
  },
  {
    "title": "Gladiator",
    "genre": [
      "Action",
      "Adventure",
      "Drama"
    ],
    "year": 2000,
    "country": "USA",
    "rating": 8.5
  }
]

Download the tutorial dataset:

curl -L https://raw.githubusercontent.com/CNAG-Biomedical-Informatics/pheno-ranker/main/t/data/movies.json -o movies.json

Configure the data​

Generic JSON does not have a fixed data model, so it requires a small YAML or JSON configuration file. The configuration identifies each record, selects the fields that can be compared, and lists any first-level array fields.

For MoviePackets, save the following as movies_config.yaml:

format: JSON
primary_key: title
allowed_terms: [country,genre,year,title]
indexed_terms: [genre]

This configuration means:

  • title uniquely identifies each movie.
  • country, genre, year, and title may be compared.
  • genre is an array rather than a single value.

The rating field is intentionally omitted because this tutorial compares categorical values rather than continuous measurements. Scalar array values such as Drama and Sci-Fi are handled automatically.

If you are adapting the example to your own data, replace these field names with the corresponding fields in your records. CSV users should instead follow the CSV import guide, which generates the configuration automatically.

Advanced configuration: explicit array identities

From Pheno-Ranker v1.08 onward, the configuration names are indexed_terms, index_regex, and identity_paths. Older names remain accepted for compatibility.

You can explicitly define how first-level array elements are named. This is useful when an array contains objects or when you want generated keys to be easier to inspect.

The MoviePacket configuration included with the repo uses this explicit form:

format: JSON
primary_key: title
allowed_terms: [country,genre,year,title]
indexed_terms: [genre]
index_regex: '^([^:]+):(\d+)'
identity_paths:
  JSON:
    genre: genre

For format: JSON, identity_paths is optional. Without it, first-level arrays are canonicalized automatically:

  • Scalar arrays use the scalar value itself.
  • Object arrays first try direct fields such as id, identifier, code, name, title, or value.
  • If none of those fields exist, Pheno-Ranker derives a stable identity from the object's meaningful content.

Arrays nested inside other arrays are also compared independently of their original order. Pheno-Ranker derives stable identities for those deeper elements from the categorical content used in the comparison. See the algorithm description for the technical details.

Running Pheno-Ranker​

Once movies.json and movies_config.yaml are in the current directory, run pheno-ranker with the commands below.

Example 1: Let's start by using all configured terms​

pheno-ranker -r movies.json --config movies_config.yaml

The result is a file named matrix.txt. In this run, Pheno-Ranker uses all terms allowed by movies_config.yaml. The figure below shows the matrix after clustering it in R.

Included R scripts

You can find in the link below a few examples to perform clustering and multidimensional scaling with your data:

R scripts at GitHub.

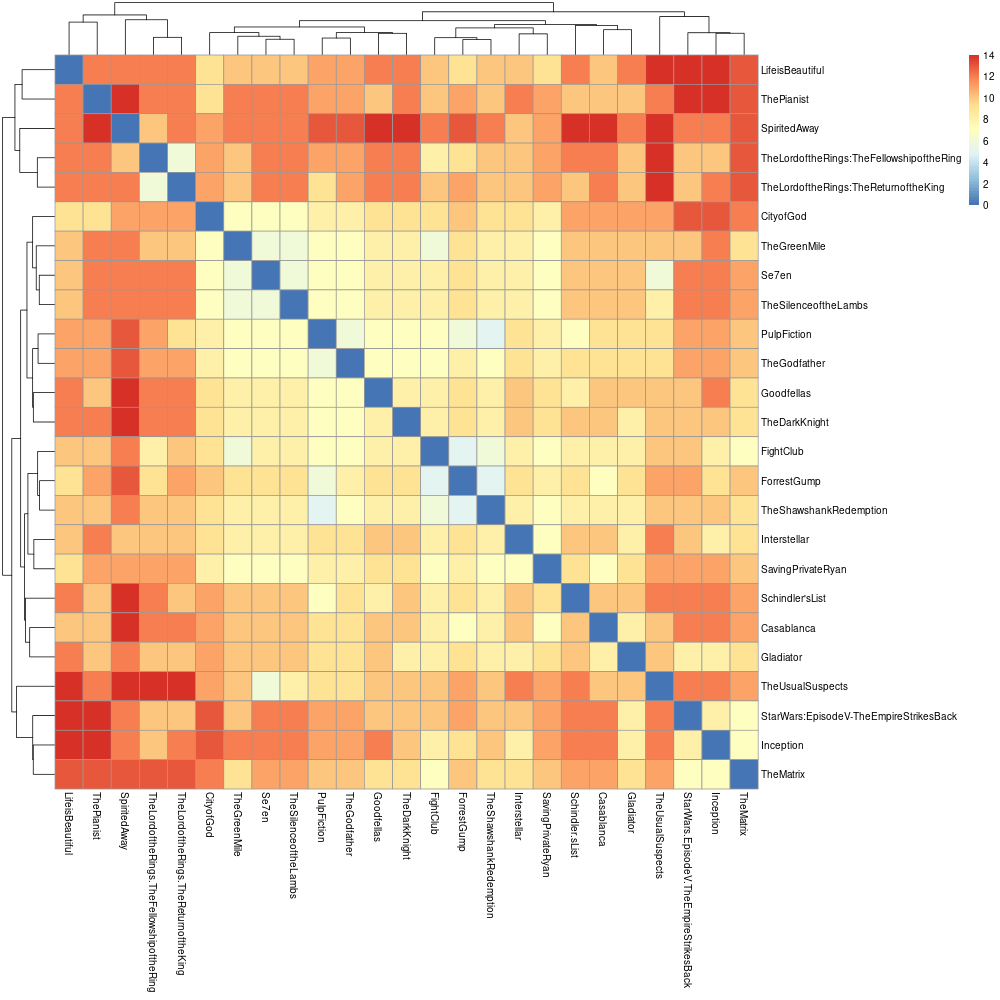

Clustered distance matrix using all MoviePacket fields
Intra-cohort pairwise comparison

Example 2: Let's cluster by year​

pheno-ranker -r movies.json --include-terms year --config movies_config.yaml

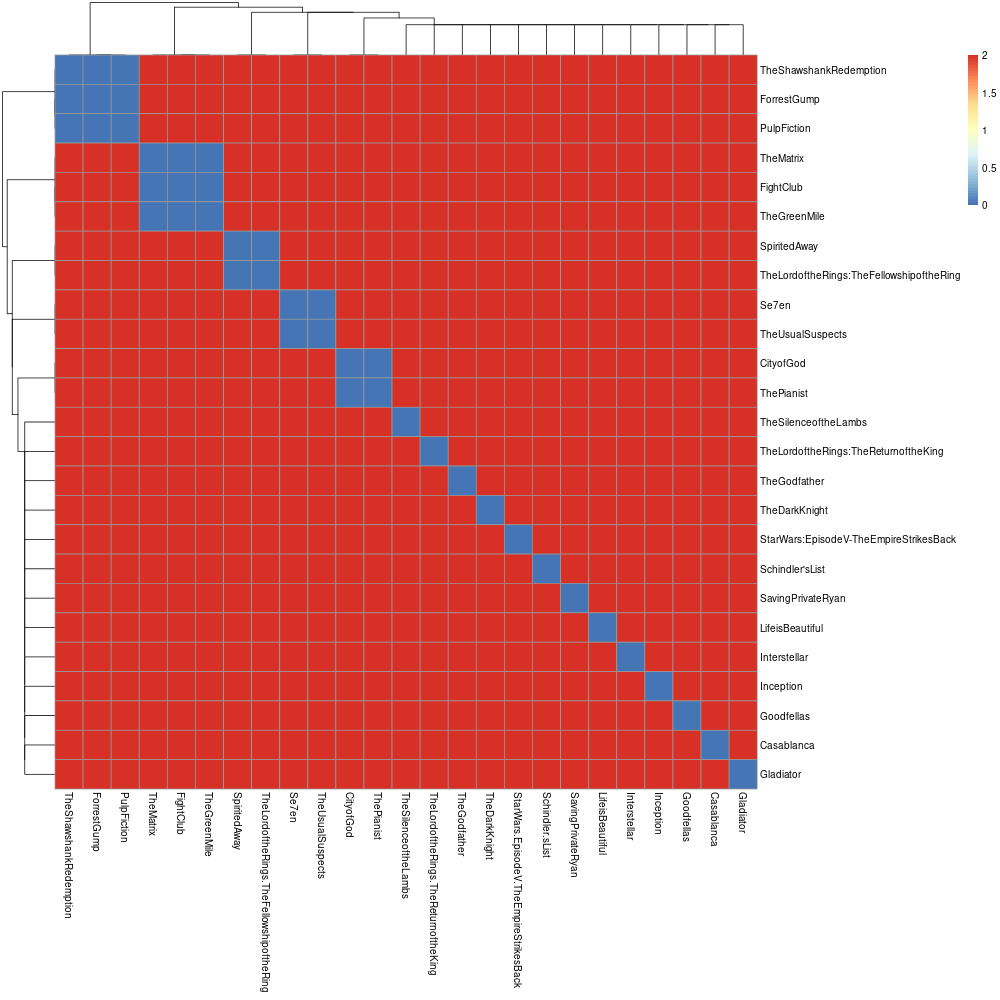

MoviePacket clustering using year
Intra-cohort pairwise comparison

Example 3: Let's cluster by genre​

pheno-ranker -r movies.json --include-terms genre --config movies_config.yaml

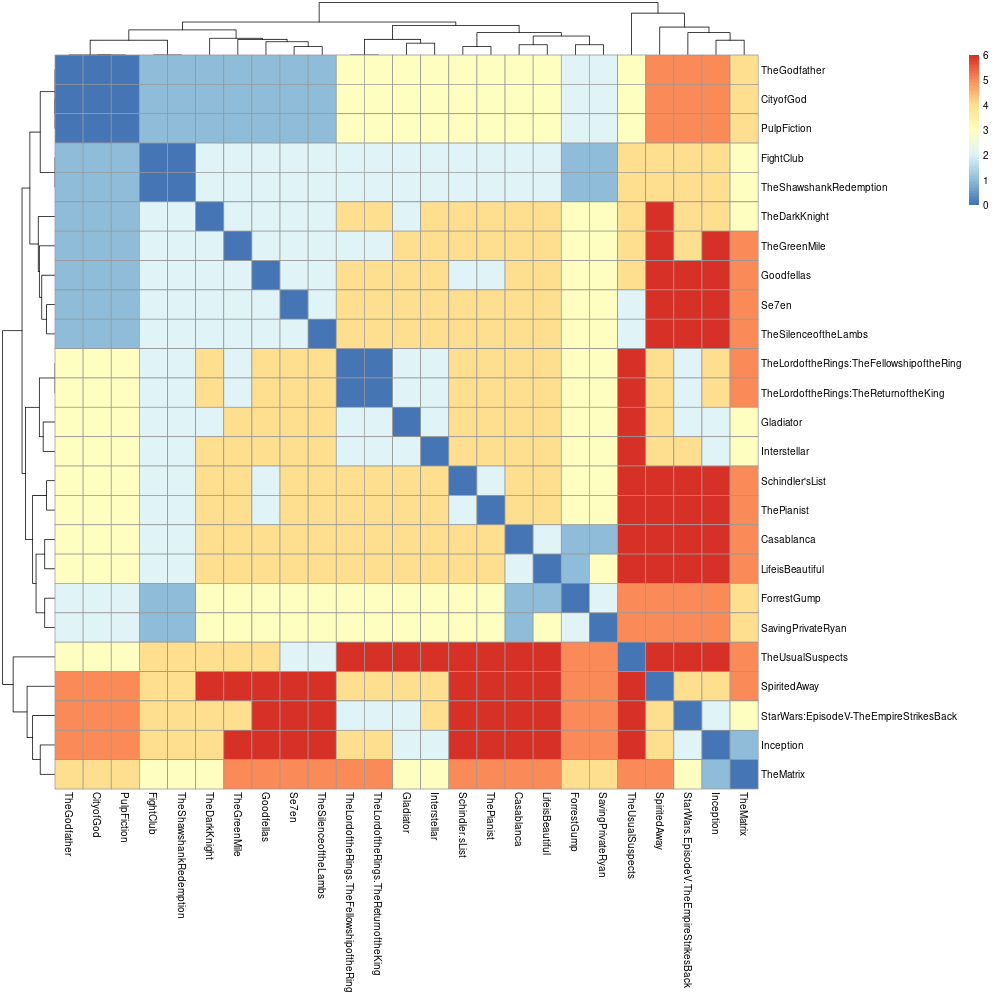

MoviePacket clustering using genre
Intra-cohort pairwise comparison

Example 4: Let's apply weights to genre​

Save the following as movies_weights.yaml:

---
genre.Biography: 25
pheno-ranker -r movies.json --include-terms genre --weights movies_weights.yaml --config movies_config.yaml

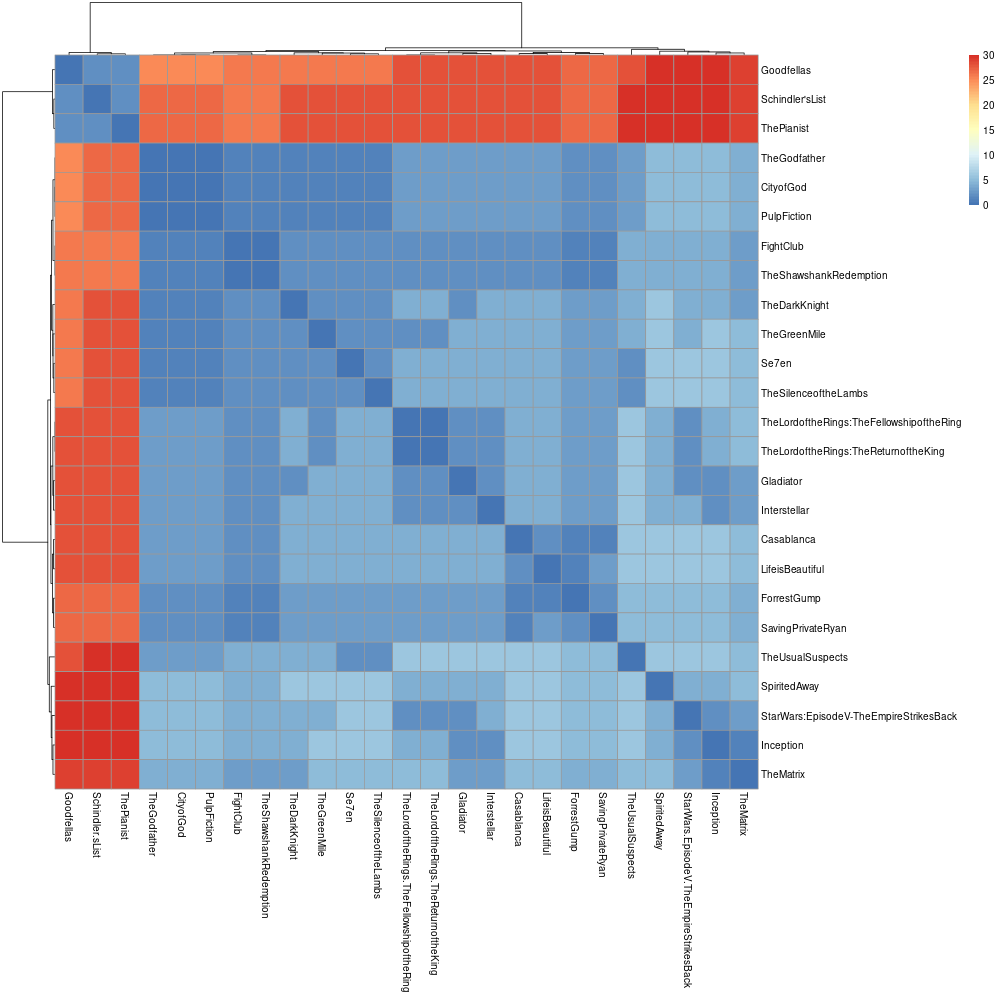

MoviePacket clustering with a weighted genre
Intra-cohort pairwise comparison

Example 5: Let's create a graph to be used in Cytoscape​

Pheno-Ranker can export a graph in a JSON format that is compatible with the Cytoscape ecosystem:

pheno-ranker -r movies.json --cytoscape-json cytoscape.json --graph-stats graph_stats.txt --config movies_config.yaml
Directed or undirected graph?

The cytoscape.json file contains one edge per pairwise comparison and avoids duplicated symmetric edges. The graph is intended to be interpreted as undirected for visual purposes. Ensure that your application logic or analysis tools interpret this accordingly if they rely on undirected connectivity.

Preview cytoscape.json
{
  "elements": {
    "edges": [
      {
        "data": {
          "source": "Casablanca",
          "target": "CityofGod",
          "weight": "11"
        }
      }
    ],
    "nodes": [
      {"data": {"id": "Casablanca"}},
      {"data": {"id": "CityofGod"}}
    ]
  }
}

The complete output contains every movie node and one edge for every pairwise comparison.

View the complete Cytoscape JSON file.

Display plot

Loading graph...

Preview graph_stats.txt
Metric: Hamming
Number of vertices: 25
Number of edges: 300
Is connected: 1
Connected Components: 1
Graph Diameter: Casablanca->SpiritedAway
Average Path Length: 9.85333333333333

This excerpt shows the graph-level summary. The complete file also reports per-vertex degrees and shortest paths.

View the complete graph statistics file.
