🏗️ Architecture

Overview

CBIcall is a thin orchestration layer around one or more concrete pipelines. Its main responsibilities are:

  • Reading a YAML configuration file
  • Validating required parameters and paths
  • Selecting the pipeline and workflow engine
  • Preparing the project directory structure
  • Calling the appropriate workflow scripts (Bash or Snakemake)
  • Managing logs and collecting results in a standard layout

The actual bioinformatics work (alignment, variant calling, QC) is implemented in modular pipelines that can be extended or replaced.

Main components

At a high level, CBIcall consists of:

  • Python wrapper
    Parses the YAML configuration, validates parameters, resolves paths and dispatches to the selected pipeline and engine.

  • Pipelines
    Implement the domain logic for WES, WGS and mtDNA runs. Each pipeline lives in its own directory and can provide Bash and/or Snakemake workflows.
    Common parameters are loaded via parameters.sh.

  • Workflow engines
    Control execution:

  • Bash scripts for simple, transparent runs

  • Snakemake workflows for dependency tracking and parallelization

  • Project layout and logs
    A standard output structure with separate 01_bam/, 02_varcall/, 03_stats/ and logs/ directories, reused across all pipelines.

  • External data
    Executables and databases for third-party tools, reference genomes and accessory data.

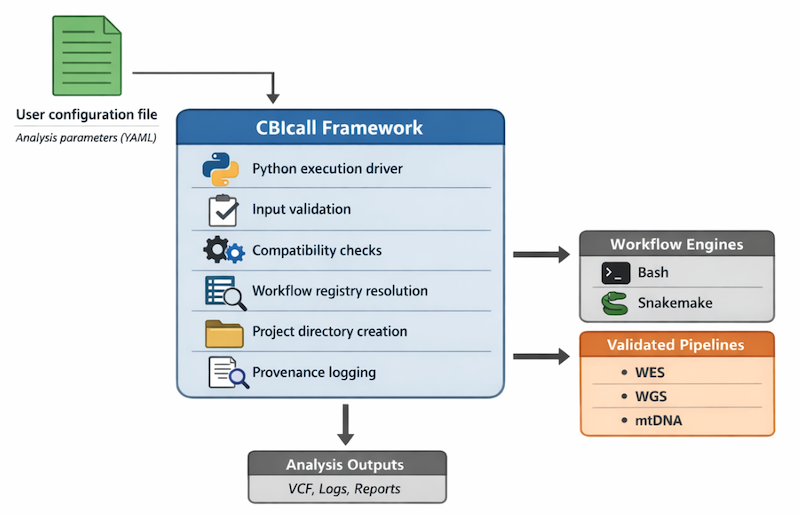

Architecture diagram

flowchart TD U[Command-line user] --> B[cbicall entry script] B --> W[Python wrapper] W --> C[Parse & validate YAML] W --> S["Set up project directory (projectdir/, 01_bam/, 02_varcall/, 03_stats/, logs/)"] W --> E{Select workflow engine} E --> BE[Bash engine] E --> SE[Snakemake engine] BE --> PB{Select pipeline - bash} PB --> BE_WES[wes_bash] PB --> BE_WGS[wgs_bash] PB --> BE_MIT[mit_bash] SE --> PS{Select pipeline - snakemake} PS --> SE_WES[wes_smk] PS --> SE_WGS[wgs_smk] PS --> SE_MIT[mit_smk] BE_WES --> O[Standard output structure] BE_WGS --> O BE_MIT --> O SE_WES --> O SE_WGS --> O SE_MIT --> O

Directory structure

<projectdir>/
  01_bam/
  02_varcall/
  03_stats/
  logs/

Typical usage:

  • Intermediate alignment and BAM files are stored under 01_bam/.
  • Variant-calling outputs (gVCFs, VCFs and related files) are stored under 02_varcall/.
  • Summary statistics and QC metrics are collected under 03_stats/.
  • Log files for all steps are stored under logs/.

Execution model

CBIcall supports two main execution modes:

  • Single mode
    Each sample is processed independently.

  • Cohort mode
    Joint analysis using per-sample gVCFs from previous single runs.

The workflow engine is selected in the YAML:

  • workflow_engine: bash
  • workflow_engine: snakemake

Supported pipelines

The following table shows valid pipeline and mode combinations for each GATK version:

GATK Version wes_single wes_cohort wgs_single wgs_cohort mit_single mit_cohort
gatk-3.5 + + - - + +
gatk-4.6 + + + + - -

Date: Oct-2025

Extensibility

New pipelines can be added without modifying the core system:

  • Each pipeline lives under workflows/<name>/
  • The wrapper maps pipeline: <name> to the correct implementation
  • Pipelines reuse the same directory layout and logging conventions
  • Pipelines may support single and/or cohort mode

See:

➡️ Extend Pipelines
