⚙️ Performance

Runtime behavior

CBIcall itself uses very little memory for orchestration. The Python wrapper typically remains below 2% of a 16 GB system. Most memory and CPU usage comes from external tools:

• BWA-MEM Memory usage increases with thread count and reference size. BWA does not provide an internal memory cap, so limiting RAM requires external mechanisms such as ulimit.

• GATK and Picard These tools default to using 8 GB of memory. This value can be adjusted through the CBIcall configuration file.

Parallelization

Parallel execution is supported, but performance does not scale linearly with additional threads. In practice, optimal throughput is usually achieved with 4-6 threads per task.

For example, on a 12-core workstation:

• Running 3 tasks with 4 threads each is typically preferred than
• Running a single task with all 12 threads

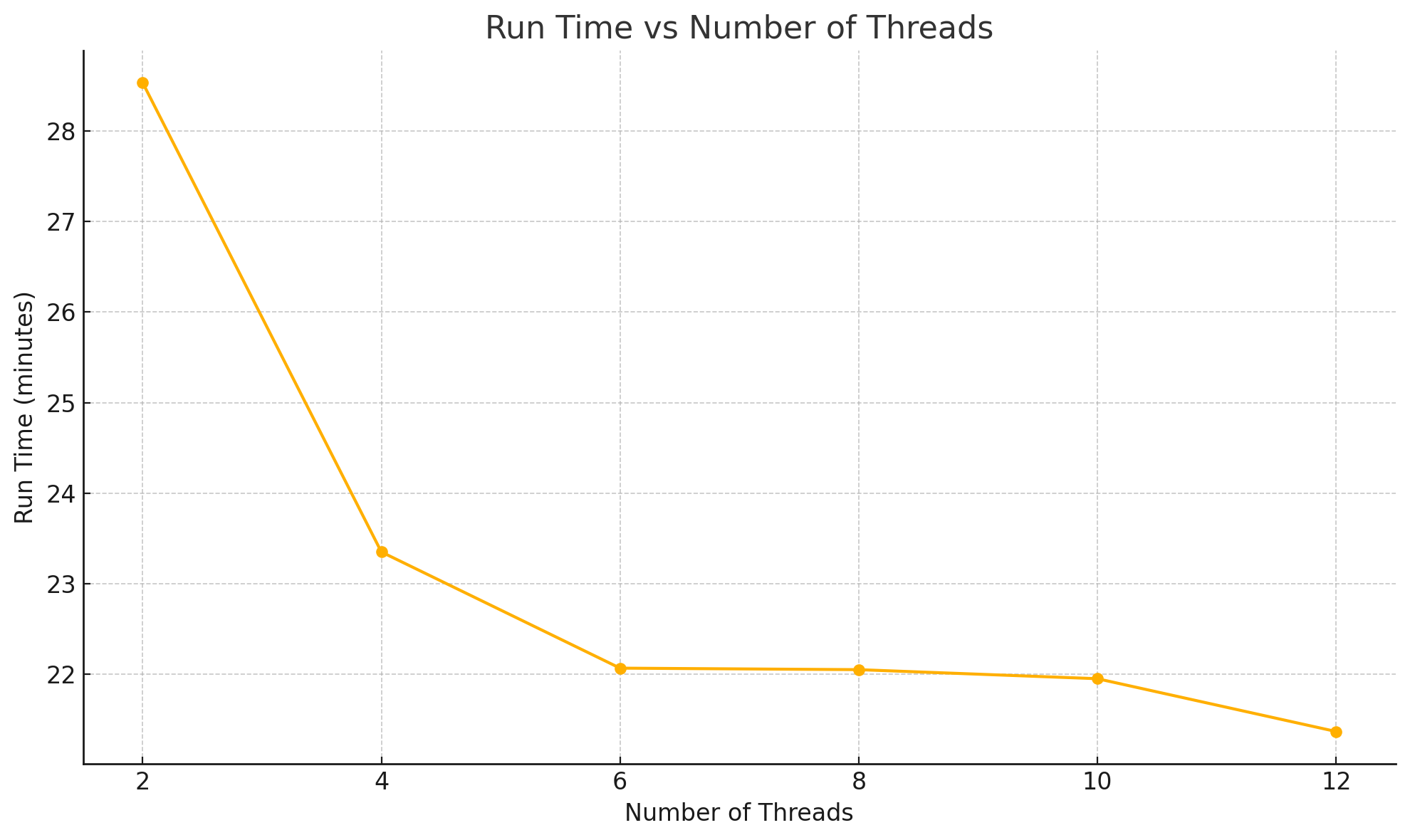

A runtime example is shown in the figure below.

Performance WES
